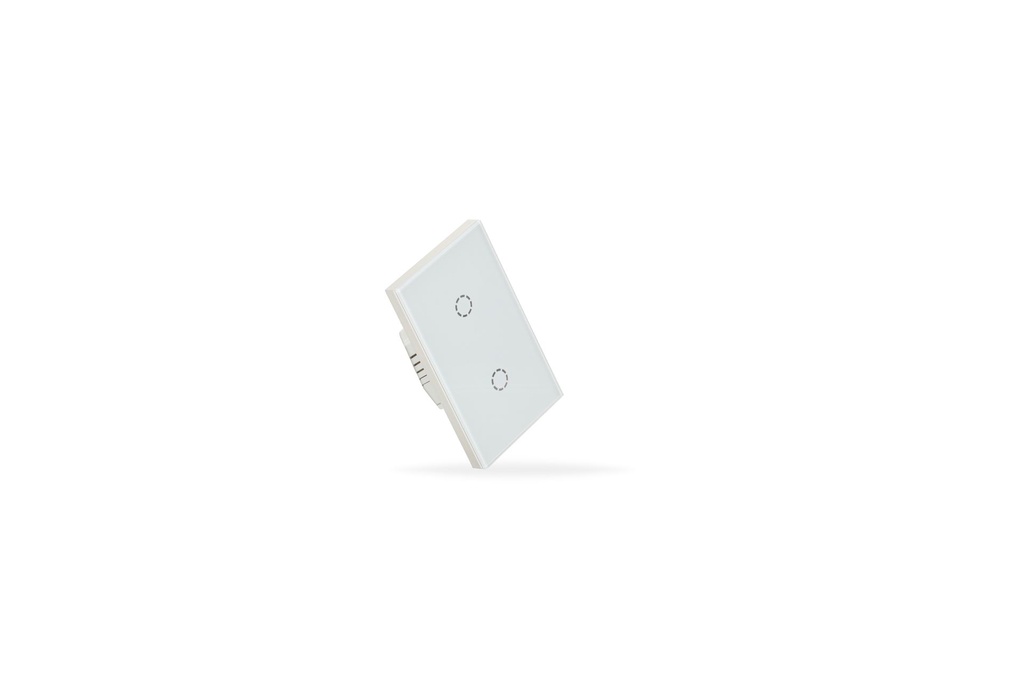

WS-X Glass Wall Switch
Capacitive Touch, PoE-Powered, Cloud-Controlled (2 or 4 Button, Black or White)
PoEWit’s Wall Switches are the first stand-alone devices that are powered by PoE and directly connect to the Cloud, allowing them to be fully configured by your Mobile App
Wall switches can be independently installed in any location and powered by PoE. Their capacitive touch glass surface is simple to clean and is stain resistant. The homeowner can configure all the settings such as button color and which lights to control using their Mobile App. One wall switch can control multiple lights and one light can be controlled by multiple wall switches
Overview
The NS-8B-10G is PoEWit’s next-generation managed PoE switch, replacing the legacy NS-8B with full 10-gigabit performance and 802.3bt Type 4 power on all eight ports. It is designed for high-power PoE applications that demand both bandwidth and reliability, including PoE lighting systems, AV-over-IP, Wi-Fi 6E / Wi-Fi 7 access points, security systems, and edge compute devices.
Each of the eight copper ports supports up to 90 watts of PoE power while simultaneously delivering up to 10 Gbps of throughput. A total PoE budget of 720 W ensures full power availability across all ports without compromise.
The NS-8B-10G is fully cloud-managed, allowing integrators to configure, monitor, and maintain the switch remotely. VLANs can be created and assigned per port through the PoEWit cloud platform, enabling proper network segmentation for lighting, AV, security, and data traffic. Four 10G SFP+ ports provide high-speed uplinks or aggregation to core switches, servers, or storage. With PoEWit app support, integrators can also remotely power-cycle any PoE port to reboot connected devices without on-site access.
| Model | NS-8B-10G |
| Switch Type | Managed PoE Multi-Gig Switch |
| Copper Ports | 8 × 10GBase-T (PoE) |
| PoE Standards | IEEE 802.3af / 802.3at / 802.3bt Type 4 |
| Per-Port PoE Power | Up to 90 W per port |
| Total PoE Budget | 720 W |
| SFP+ Ports | 4 × 10G SFP+ |
| Power Supply | Internal 900 W PSU |
| Management | Cloud-managed via PoEWit App and cloud portal |
| VLAN Support | Remote VLAN creation and per-port VLAN assignment |
| Per-Port Control | Remote PoE on/off and power cycling on all PoE ports |
| Form Factor | 13″ Rack Mount |
