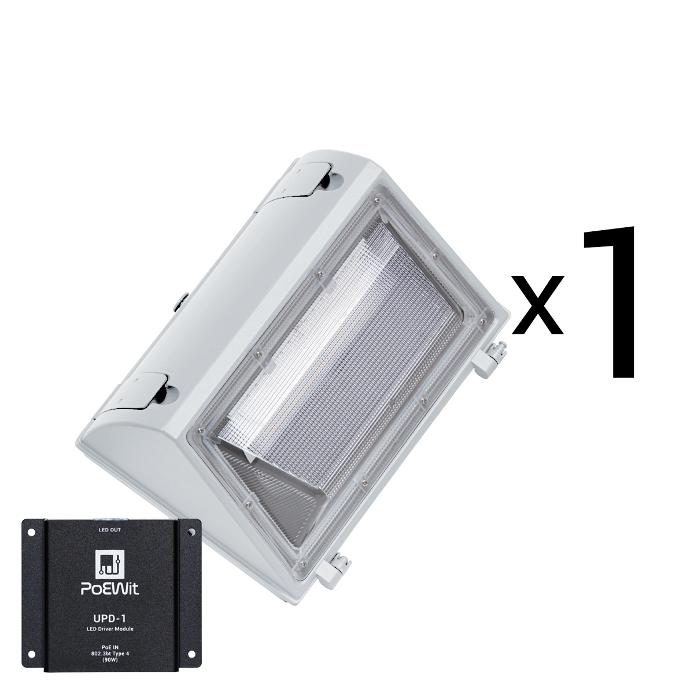

WP-6 RGBWW LED Wall Pack
RGB + 2700K-5000K App-Selectable Color Temp, IP65, Dimmable, Cloud-Intelligent, Choice of Driver
WP-6 ships with your choice of constant current LED driver:
|
Driver |
Internal LED Channels |
LED Output Ports |
PoE Pass-Through Ports |
Dry Contact Closure Input Channels |
Max Fixtures & PoE Devices Supported |
| UPD-1 | 4 | 1 | 0 | 0 |
(1) WP-6 fixture |
| UPD-1-PT | 4 | 1 | 4 | 2 |
(1) WP-6 fixture & |
| Color Temp | Max Lumens | Beam Angle | Dimmable | Max Planning Watts Per Fixture | Housing Color | Mounting | Fixture IP Rating | Fixture Dimensions |
| RGB & 2700K-5000K App-Selectable | 5720lm | 110° | Yes | 52W | Brown or White | Wall | IP65 | 13.1" L x 9.8" W x 6.3" D |
PoEWit PoE Lighting Features
Cloud-Intelligent
Cloud connectivity is required for initial configuration. Thereafter, PoEWit lights work locally, with no on-site controller or additional hardware required.
PoE-Powered
PoEWit lighting solutions are powered by Power over Ethernet (PoE), a safer and more energy-efficient alternative to high voltage.
Simple App Configuration
Download the FREE PoEWit app for iOS/Android to configure PoEWit lighting solutions with ease.
Versatile, Intelligent Controls
PoEWit lights can be controlled remotely via the PoEWit app or locally via PoEWit Motion & Light Sensors (MD-Series), Wall Switches (WS-Series), UPSs (U-Series), or Dry Contact/Voltage Input Trigger (IP-1).
Schedule Setting
Using the PoEWit app, lights can be scheduled to turn on/off/dim at specific times of day.
Home Automation Integrations
PoEWit lighting solutions integrate with Crestron SIMPL, Control4, and URC Automation Systems. FREE software drivers available for download on PoEWit website.
Recommended Power Source
Power your PoEWit lights with a PoEWit BT PoE Network Switch (NS-8B or NS-8-4B) or Power Injector (PI-09).
Emergency Lighting
To enable emergency lighting capability, add a PoEWit UPS (U-11, U-15, or U-22).
PoEWit Outdoor Lighting Network Example
| Driver | Internal LED Channels | LED Output Ports | PoE Pass-Through Ports | Dry Contact Closure Input Channels | Max Fixtures & PoE Devices Supported |
UPD-1 | 4 | 1 | 0 | 0 | (1) RRM-1 fixture |
UPD-1-PT | 4 | 1 | 4 | 2 | (1) RRM-1 fixture & (4) PoE devices |
UPD-4 | 16 | 4 | 0 | 2 | (4) RRM-1 Fixtures |
| Color Temp | Max Lumens | Beam Angle | Dimmable | Max Planning Watts Per Fixture | Trim Color | Mounting | Fixture IC Rating | Fixture IP Rating | Fixture Dimensions | Cutout | CRI |
3-inch | RGB Perimeter & 2700k-6000k Center & App Selectable | 1100 lm | Adjustable 15°, 24°, 36° and 55° | Yes | 12 Watts | White & Black, Multiple Baffle Reflector Colors | Recessed | IC- Rated | 3.34" D x 3.74" H | 3" diameter and 3" square | >90 |
*For custom fixture options (e.g. black trim, gold/silver/black baffle reflector) or optical accessories, please contact PoEWit Sales. Lead time for custom fixtures is typically 4 months.
PoEWit PoE Lighting Features
Cloud-Intelligent
Cloud connectivity is required for initial configuration. Thereafter, PoEWit lights work locally, with no on-site controller or additional hardware required.
PoE-Powered
Download the FREE PoEWit app for iOS/Android to configure PoEWit lighting solutions with ease.
Simple App Configuration
Download the FREE PoEWit app for iOS/Android to configure PoEWit lighting solutions with ease.
Versatile, Intelligent Controls
PoEWit lights can be controlled remotely via the PoEWit app or locally via PoEWit Motion & Light Sensors (MD-Series), Wall Switches (WS-Series), UPSs (U-Series), or Dry Contact/Voltage Input Trigger (IP-1).
Schedule Setting
Using the PoEWit app, lights can be scheduled to turn on/off/dim at specific times of day.
Home Automation Integrations
PoEWit lighting solutions integrate with Crestron SIMPL, Control4, and URC Automation Systems. FREE software drivers available for download on PoEWit website.
Recommended Power Source
Power your PoEWit lights with a PoEWit BT PoE Network Switch (NS-8B or NS-8-4B) or Power Injector (PI-09).
Emergency Lighting
To enable emergency lighting capability, add a PoEWit UPS (U-11, U-15, or U-22).
