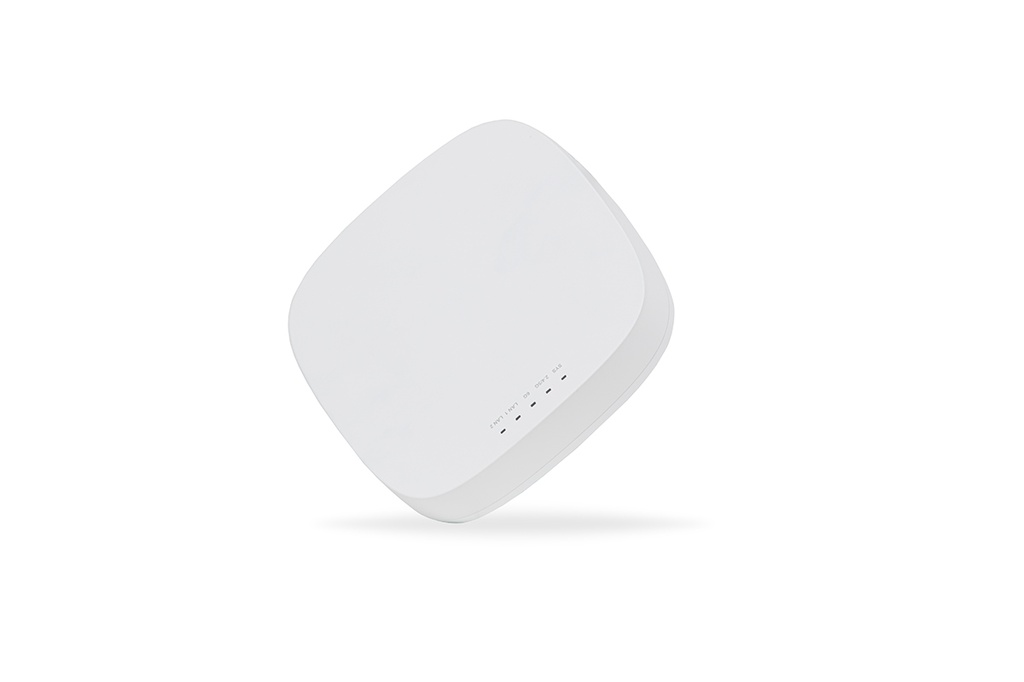

WAP-2E 2x2 Wi-Fi 6E Wireless Access Point
Wi-Fi 6E, Tri-Band, 6 Spatial Streams, Supports 1536 Clients
POEWIT BRINGS A TRUE ENTERPRISE-CLASS, high-performance Wi-Fi 6E wireless access point.
The WAP-2E is a true Enterprise-Class AP built for the latest Wi-Fi standard - Wi-Fi 6E. This high-performance tri-band AP - which supports 2.4GHz, 5GHz, and 6GHz - is designed for indoor deployment in challenging wireless environments where the uncongested 6GHz band enables ultra-fast wireless speeds, even in high-interference metro areas. The tri-band supports 6 spatial treams (2x2:2 in 2.4GHz; 2x2:2 in 5GHz; 2x2:2 in 6GHz) to deliver reliable, secure, and ultra-high performance to many wireless devices simultaneously. The WAP-2E is powered by PoE+, making it easy to upgrade to Wi-Fi 6E using existing 802.3at PoE switches. It also features a multi-core CPU, compact form factor, and energy-efficient wireless radios.
Overview
The NS-8B-10G is PoEWit’s next-generation managed PoE switch, replacing the legacy NS-8B with full 10-gigabit performance and 802.3bt Type 4 power on all eight ports. It is designed for high-power PoE applications that demand both bandwidth and reliability, including PoE lighting systems, AV-over-IP, Wi-Fi 6E / Wi-Fi 7 access points, security systems, and edge compute devices.
Each of the eight copper ports supports up to 90 watts of PoE power while simultaneously delivering up to 10 Gbps of throughput. A total PoE budget of 720 W ensures full power availability across all ports without compromise.
The NS-8B-10G is fully cloud-managed, allowing integrators to configure, monitor, and maintain the switch remotely. VLANs can be created and assigned per port through the PoEWit cloud platform, enabling proper network segmentation for lighting, AV, security, and data traffic. Four 10G SFP+ ports provide high-speed uplinks or aggregation to core switches, servers, or storage. With PoEWit app support, integrators can also remotely power-cycle any PoE port to reboot connected devices without on-site access.
| Model | NS-8B-10G |
| Switch Type | Managed PoE Multi-Gig Switch |
| Copper Ports | 8 × 10GBase-T (PoE) |
| PoE Standards | IEEE 802.3af / 802.3at / 802.3bt Type 4 |
| Per-Port PoE Power | Up to 90 W per port |
| Total PoE Budget | 720 W |
| SFP+ Ports | 4 × 10G SFP+ |
| Power Supply | Internal 900 W PSU |
| Management | Cloud-managed via PoEWit App and cloud portal |
| VLAN Support | Remote VLAN creation and per-port VLAN assignment |
| Per-Port Control | Remote PoE on/off and power cycling on all PoE ports |
| Form Factor | 13″ Rack Mount |
