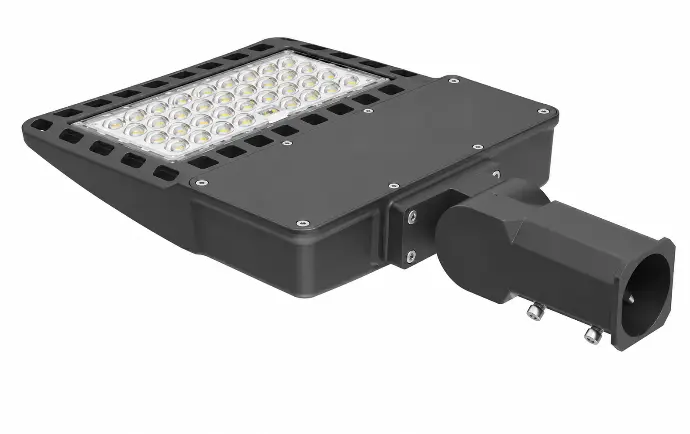

SX-1 6500K LED Shoebox Light
6500K Fixed Color Temp, IP65, Black Housing, Dimmable, Cloud-Controlled, Choice of Driver
Ships with slip-fitter bracket for easy pole-mounting. Ideal for parking lot lighting.
SX-1 ships with your choice of constant current LED driver:
| Driver | Internal LED Channels | LED Output Ports | PoE Pass-Through Ports | Dry Contact Closure Input Channels | Max Fixtures & PoE Devices Supported |
UPD-1 | 4 | 1 | 0 | 0 | (1) SX-1 fixture |
UPD-1-PT | 4 | 1 | 4 | 2 | (1) SX-1 fixture & |
SX-1 Specifications
Color Temp | Max Lumens | Beam Angle | Dimmable | Max Planning Watts Per Fixture | Trim Color | Mounting | Fixture IP Rating | Fixture Dimensions | CRI |
6500K | 9000lm | 60° | Yes | 60W | Black | Pole (STD)/ Wall (Optional) | IP65 | 21.34" L x 12.44" W x 2.56" D | >80 |
PoEWit PoE Lighting Features
Cloud-Intelligent
Cloud connectivity is required for initial configuration. Thereafter, PoEWit lights work locally, with no on-site controller or additional hardware required.
PoE-Powered
PoEWit lighting solutions are powered by Power over Ethernet (PoE), a safer and more energy-efficient alternative to high voltage.
Simple App Configuration
Download the FREE PoEWit app for iOS/Android to configure PoEWit lighting solutions with ease.
Versatile, Intelligent Controls
PoEWit lights can be controlled remotely via the PoEWit app or locally via PoEWit Motion & Light Sensors (MD-Series), Wall Switches (WS-Series), UPSs (U-Series), or Dry Contact/Voltage Input Trigger (IP-1).
Schedule Setting
Using the PoEWit app, lights can be scheduled to turn on/off/dim at specific times of day.
Home Automation Integrations
PoEWit lighting solutions integrate with Crestron SIMPL, Control4, and URC Automation Systems. FREE software drivers available for download on PoEWit website.
Recommended Power Source
Power your PoEWit lights with a PoEWit BT PoE Network Switch (NS-8B or NS-8-4B) or Power Injector (PI-09).
Emergency Lighting
To enable emergency lighting capability, add a PoEWit UPS (U-11, U-15, or U-22).
Overview
The NS-8B-10G is PoEWit’s next-generation managed PoE switch, replacing the legacy NS-8B with full 10-gigabit performance and 802.3bt Type 4 power on all eight ports. It is designed for high-power PoE applications that demand both bandwidth and reliability, including PoE lighting systems, AV-over-IP, Wi-Fi 6E / Wi-Fi 7 access points, security systems, and edge compute devices.
Each of the eight copper ports supports up to 90 watts of PoE power while simultaneously delivering up to 10 Gbps of throughput. A total PoE budget of 720 W ensures full power availability across all ports without compromise.
The NS-8B-10G is fully cloud-managed, allowing integrators to configure, monitor, and maintain the switch remotely. VLANs can be created and assigned per port through the PoEWit cloud platform, enabling proper network segmentation for lighting, AV, security, and data traffic. Four 10G SFP+ ports provide high-speed uplinks or aggregation to core switches, servers, or storage. With PoEWit app support, integrators can also remotely power-cycle any PoE port to reboot connected devices without on-site access.
| Model | NS-8B-10G |
| Switch Type | Managed PoE Multi-Gig Switch |
| Copper Ports | 8 × 10GBase-T (PoE) |
| PoE Standards | IEEE 802.3af / 802.3at / 802.3bt Type 4 |
| Per-Port PoE Power | Up to 90 W per port |
| Total PoE Budget | 720 W |
| SFP+ Ports | 4 × 10G SFP+ |
| Power Supply | Internal 900 W PSU |
| Management | Cloud-managed via PoEWit App and cloud portal |
| VLAN Support | Remote VLAN creation and per-port VLAN assignment |
| Per-Port Control | Remote PoE on/off and power cycling on all PoE ports |
| Form Factor | 13″ Rack Mount |
