  2. SX-1 LED Shoebox Light

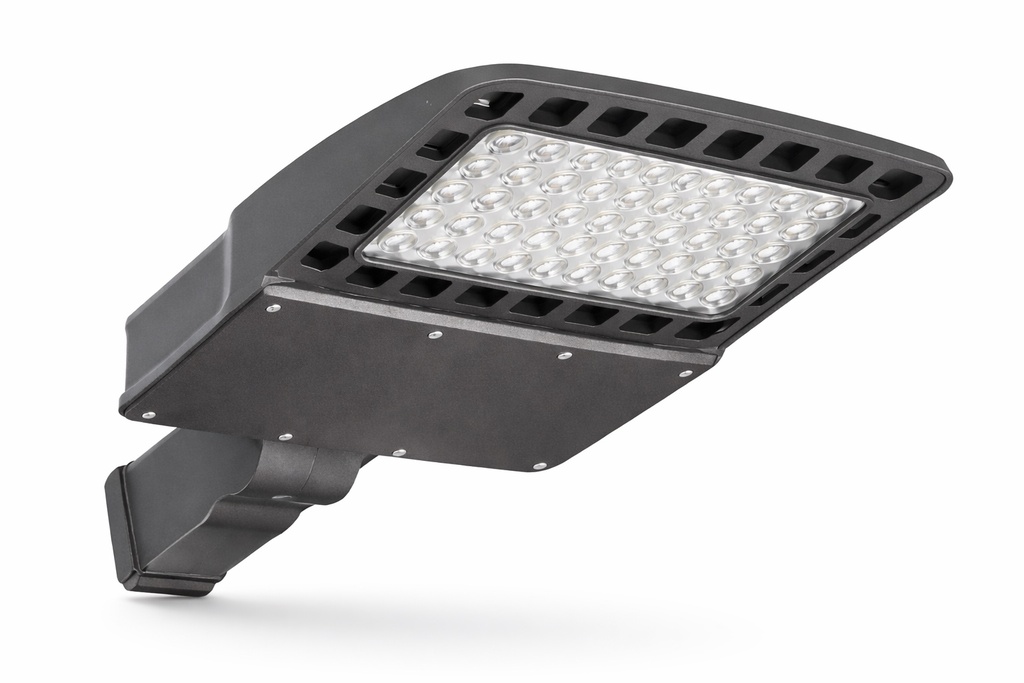

SX-1 LED Shoebox Light

https://portal.poewit.com/web/image/product.template/528/image_1920?unique=2d2c69e
  • Driver (See Table Below)

This combination does not exist.

Contact Us

6500K Fixed Color Temp, IP65, Dimmable, Cloud-Intelligent, Choice of Driver.

Ships with slip-fitter bracket for easy pole-mounting. Ideal for parking lot lighting.

Terms and Conditions
Shipping: Usually 0-2 Business Days

SX-1 ships with your choice of constant current LED driver:

Driver

Internal LED Channels

LED Output Ports

PoE Pass-Through Ports

Dry Contact Closure Input Channels

Max Fixtures & PoE Devices Supported

UPD-1

4

1

0

0

(1) SX-1 fixture

UPD-1-PT

4

1

4

2

(1) SX-1 fixture &
(4) PoE devices


SX-1 Specifications


Color Temp

Max Lumens

Beam Angle

Dimmable

Max Planning Watts Per Fixture

Trim Color

Mounting

Fixture IP Rating

Fixture Dimensions

CRI

6500K

9000lm

60°

Yes

60W

Black

Pole / Wall

IP65

21.34" L x 12.44" W x 2.56" D

>80

PoEWit PoE Lighting Features

Cloud-Intelligent

Cloud connectivity is required for initial configuration. Thereafter, PoEWit lights work locally, with no on-site controller or additional hardware required.

PoE-Powered

PoEWit lighting solutions are powered by Power over Ethernet (PoE), a safer and more energy-efficient alternative to high voltage.

Simple App Configuration

Download the FREE PoEWit app for iOS/Android to configure PoEWit lighting solutions with ease.

Versatile, Intelligent Controls

PoEWit lights can be controlled remotely via the PoEWit app or locally via PoEWit Motion & Light Sensors (MD-Series), Wall Switches (WS-Series), UPSs (U-Series), or Dry Contact/Voltage Input Trigger (IP-1).

Schedule Setting

Using the PoEWit app, lights can be scheduled to turn on/off/dim at specific times of day.

Home Automation Integrations

PoEWit lighting solutions integrate with Crestron SIMPL, Control4, and URC Automation Systems. FREE software drivers available for download on PoEWit website.

Recommended Power Source

Power your PoEWit lights with a PoEWit BT PoE Network Switch (NS-8B or NS-8-4B) or Power Injector (PI-09).

Emergency Lighting

To enable emergency lighting capability, add a PoEWit UPS (U-11, U-15, or U-22).
