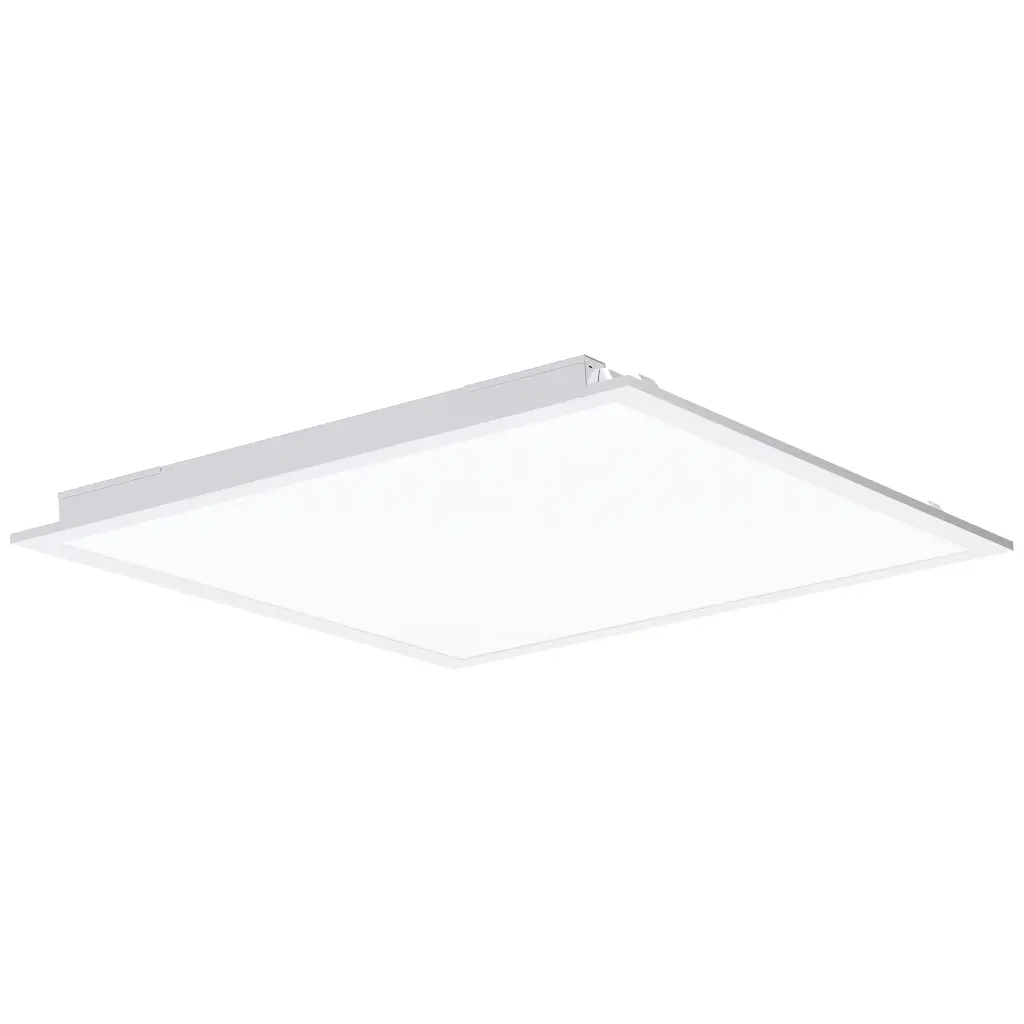

PT-1 Tunable White LED Panel Light (2'x2' & 2'x4')
IC-Rated, 4000K-6000K App-Selectable Color Temp, IP20, Dimmable, Cloud-Intelligent
PT-1 ships with the UPD-1 constant current LED driver
(UPD-1-PT only available for custom or volume orders)
| Driver | Internal LED Channels | LED Output Ports | PoE Pass-Through Ports | Dry Contact Closure Input Channels | Max Fixtures & PoE Devices Supported |
UPD-1 | 4 | 1 | 0 | 0 | (2) 2x2 fixtures OR (1) 2x4 fixture |
UPD-1-PT | 4 | 1 | 4 | 2 | (2) 2x2 fixtures & OR (1) 2x4 fixture & |
PT-1 Specifications
Color Temp | Max Lumens | Beam Angle | Dimmable | Max Planning Watts Per Fixture | Trim Color | Mounting | Fixture IP Rating | Fixture Dimensions | CRI | |
2' x 2' | 4000K - 6000K App-Selectable | 5000lm | 120° | Yes | 35W | White | Recessed/ | IP20 | 23.7" L x 23.7" W x 1.46"D | >80 |
2' x 4' | 4000K - 6000K App-Selectable | 7700lm | 120° | Yes | 60W | White | Recessed/ | IP20 | 23.7" L x 47.7" W x 1.46" D | >80 |
PoEWit PoE Lighting Features
Cloud-Intelligent
Cloud connectivity is required for initial configuration. Thereafter, PoEWit lights work locally, with no on-site controller or additional hardware required.
PoE-Powered
PoEWit lighting solutions are powered by Power over Ethernet (PoE), a safer and more energy-efficient alternative to high voltage.
Simple App Configuration
Download the FREE PoEWit app for iOS/Android to configure PoEWit lighting solutions with ease.
Versatile, Intelligent Controls
PoEWit lights can be controlled remotely via the PoEWit app or locally via PoEWit Motion & Light Sensors (MD-Series), Wall Switches (WS-Series), UPSs (U-Series), or Dry Contact/Voltage Input Trigger (IP-1).
Schedule Setting
Using the PoEWit app, lights can be scheduled to turn on/off/dim at specific times of day.
Home Automation Integrations
PoEWit lighting solutions integrate with Crestron SIMPL, Control4, and URC Automation Systems. FREE software drivers available for download on PoEWit website.
Recommended Power Source
Power your PoEWit lights with a PoEWit BT PoE Network Switch (NS-8B or NS-8-4B) or Power Injector (PI-09).
Emergency Lighting
To enable emergency lighting capability, add a PoEWit UPS (U-11, U-15, or U-22).
Designed specifically for commercial buildings with drop ceilings. Ideal for both recessed and suspended installations, the PT-1 combines sleek design with smart cloud control and all the benefits of low-voltage PoE lighting.
With PoE, you get simplified wiring, intelligent control, and enhanced energy efficiency — all without the complexity of high voltage.
Available in 2'x2' and 2'x4' sizes, each fixture includes the standard UPD‑1 PoE Driver. The UPD‑1‑PT driver is available for custom or volume orders.
PT-1 Features:
- Tunable White (4000K–6000K) – App-controlled
- Dimmable with 120° Beam Angle
- High CRI 80+ for accurate color rendering
- Dust-proof ETL, IP20-rated for durability
- Lightweight and easy to install
Why PoE?
✔ No licensed electrician needed
✔ Centralized, secure control
✔ Reduced wiring cost and complexity
✔ Integrates with PoEWit’s cloud-based lighting platform
