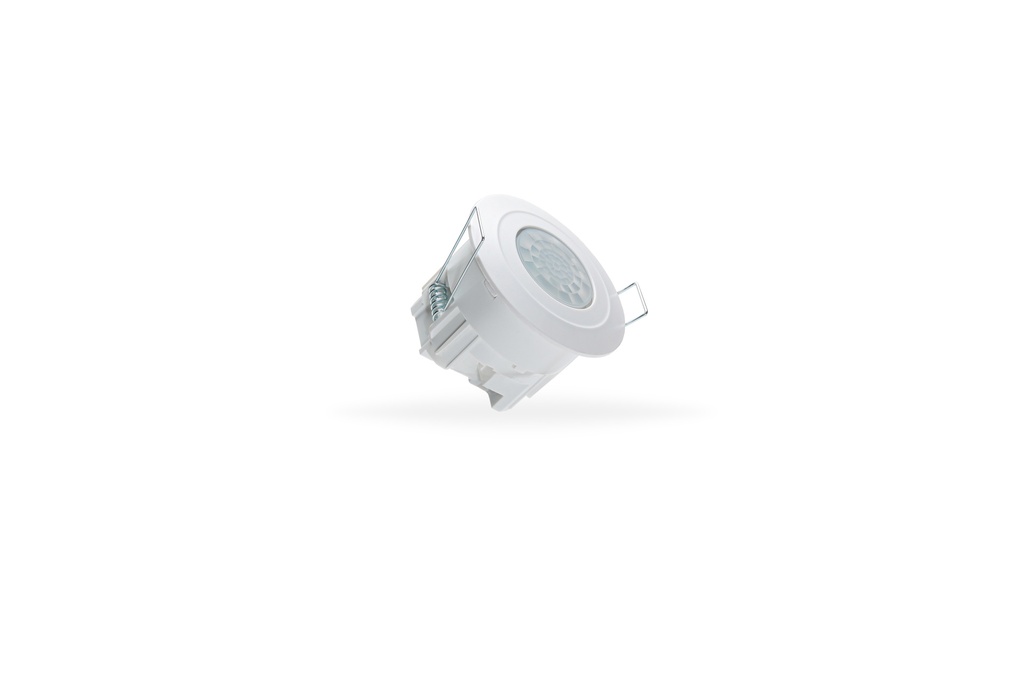

MD-2 Indoor Motion & Light Sensor
Indoor, Recessed, IP20, 360° Detection Angle, PoE-Powered, Cloud-Intelligent
The MD-2 is the first standalone PoE-powered and cloud-configured indoor motion & light sensor.
The MD-2 can be placed in any room to automatically turn on lights when motion is detected. All motion and light detected will pass to the cloud, where the user can select which light(s) will turn on and for what duration. Unlike other motion and light sensors, the MD-2 can be set to a schedule to turn on lights at predefined intensity levels during specific timeframes. For example, it can be set to turn on bathroom lights at 100% intensity when motion is detected during the day and at a lower luminosity when motion is detected at night to create a night-light effect. The MD-2 can also be set to ignore motion during specific timeframes. Settings are schedules can be managed with ease via the PoEWit app.
| Driver | Internal LED Channels | LED Output Ports | PoE Pass-Through Ports | Dry Contact Closure Input Channels | Max Fixtures & PoE Devices Supported |
UPD-1 | 4 | 1 | 0 | 0 | (1) RRM-1 fixture |
UPD-1-PT | 4 | 1 | 4 | 2 | (1) RRM-1 fixture & (4) PoE devices |
UPD-4 | 16 | 4 | 0 | 2 | (4) RRM-1 Fixtures |
| Color Temp | Max Lumens | Beam Angle | Dimmable | Max Planning Watts Per Fixture | Trim Color | Mounting | Fixture IC Rating | Fixture IP Rating | Fixture Dimensions | Cutout | CRI |
3-inch | RGB Perimeter & 2700k-6000k Center & App Selectable | 1100 lm | Adjustable 15°, 24°, 36° and 55° | Yes | 12 Watts | White & Black, Multiple Baffle Reflector Colors | Recessed | IC- Rated | 3.34" D x 3.74" H | 3" diameter and 3" square | >90 |
*For custom fixture options (e.g. black trim, gold/silver/black baffle reflector) or optical accessories, please contact PoEWit Sales. Lead time for custom fixtures is typically 4 months.
PoEWit PoE Lighting Features
Cloud-Intelligent
Cloud connectivity is required for initial configuration. Thereafter, PoEWit lights work locally, with no on-site controller or additional hardware required.
PoE-Powered
Download the FREE PoEWit app for iOS/Android to configure PoEWit lighting solutions with ease.
Simple App Configuration
Download the FREE PoEWit app for iOS/Android to configure PoEWit lighting solutions with ease.
Versatile, Intelligent Controls
PoEWit lights can be controlled remotely via the PoEWit app or locally via PoEWit Motion & Light Sensors (MD-Series), Wall Switches (WS-Series), UPSs (U-Series), or Dry Contact/Voltage Input Trigger (IP-1).
Schedule Setting
Using the PoEWit app, lights can be scheduled to turn on/off/dim at specific times of day.
Home Automation Integrations
PoEWit lighting solutions integrate with Crestron SIMPL, Control4, and URC Automation Systems. FREE software drivers available for download on PoEWit website.
Recommended Power Source
Power your PoEWit lights with a PoEWit BT PoE Network Switch (NS-8B or NS-8-4B) or Power Injector (PI-09).
Emergency Lighting
To enable emergency lighting capability, add a PoEWit UPS (U-11, U-15, or U-22).
